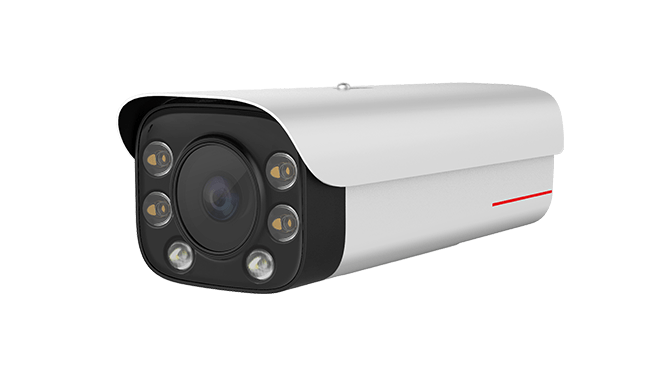

HWT-M2241-10-QL
2T 4MP Multi-Algorithm Bullet Camera

Series: Form:
  • 2 TOPS computing power
  • Supports omni-data structuring, multi-algorithm switchover, behavior analysis, crowd flow analysis, target detection, person detection, object (motor vehicle, non-motorized vehicle, and pedestrian) classification, vehicle recognition, vehicle event detection, and traffic flow statistics
  • Supports backlight adaptation and overcast adaptation
  • 1/1.8″ CMOS sensor
  • Online loading and upgrade of algorithms
  • 120 dB super wide dynamic range (WDR), ensuring that both foreground and background objects are clearly identified in environments with sharp light contrast
  • Supports omni-data structuring

Description

Max resolution4MP 2560(H)*1440(V)
Sensor size1/1.8″ CMOS
Shutter speedSupports slow shutter; Slow shutter speed levels: 1/3s, 1/4s, 1/8s, 1/12s, 1/15s; Non-slow shutter speed levels: 1/25s, 1/30s, 1/50s, 1/60s, 1/90s, 1/100s, 1/120s, 1/125s, 1/180s, 1/250s, 1/350s, 1/500s, 1/725s, 1/1000s, 1/1500s, 1/2000s, 1/3000s, 1/4000s, 1/6000s, 1/10000s, 1/30000s, 1/100000s, and customized; Full intelligence or target checkpoint mode: 1/25s, 1/30s, 1/50s, 1/60s, 1/90s, 1/100s, 1/120s, 1/125s, 1/180s, 1/250s, 1/350s, 1/500s, 1/725s, 1/1000s, 1/1500s, 1/2000s, 1/3000s, 1/4000s, 1/6000s, 1/10000s, 1/30000s, 1/100000s, and customized; Full intelligence or micro checkpoint mode: 1/100s, 1/120s, 1/125s, 1/180s, 1/250s, 1/350s, 1/500s, 1/725s, 1/1000s, 1/1500s, 1/2000s, 1/3000s, 1/4000s, 1/6000s, 1/10000s, 1/30000s, 1/100000s, and customized; Default: 1/25s; Full intelligence mode: Slow shutter is not supported; target checkpoint: 1/100s; micro checkpoint: 1/250s; Target checkpoint: 1/100s; Micro checkpoint: 1/250s; Behavior analysis: 1/25s
Day/Night modeSupported; automatic (ICR), color, B/W, and scheduled (default: color); sensitivity level: high (default), medium, and low; image triggering/internal triggering
Gain controlManual exposure: 101 levels configurable from 0 to 100 (step: 1); The default value is 0.
White balanceAuto/Manual/OnePush
Digital noise reduction2D/3D noise reduction
WDR120db
Highlight compensationSupported
EISSupported. Sensitivity levels are not supported.
DefoggingSupported
Exposure compensationSupported
Exposure modeSupported
SNR>45dB
Motorized focusSupported
Day/Night focus compensationSupported
Backlight adaptationSupported
Overcast adaptationSupported
Corridor modeSupported
Image correctionVertical, horizontal, or both
Digital zoomSupported
Privacy maskSupported
EMMCSupported (can be enabled or disabled)
